Quanzhou Ausenist Technology Co., Ltd IP54 vs IP65 VFD for an Outdoor Booster Pump: What Changes?

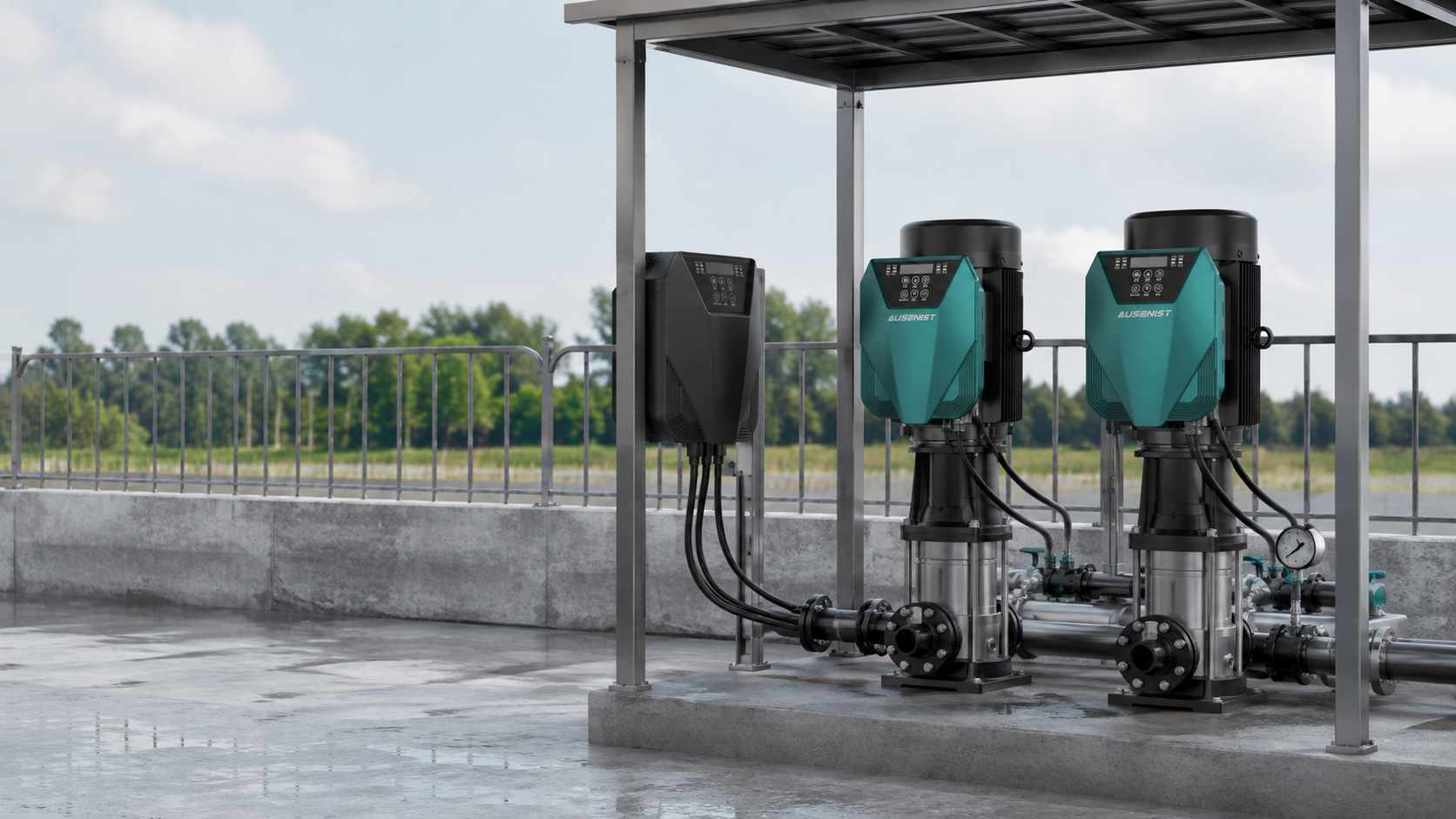

Engineering reference image; it does not certify an enclosure rating.
IP65 provides stronger dust and water-jet protection than IP54, but the rating alone does not make an outdoor pump installation reliable. Sun, heat, condensation, flooding, cable glands and installation orientation still matter. AUSENIST YS620 and YS820 materials describe IP54 configurations; an IP65 requirement needs separate product or enclosure confirmation.
Quick Comparison
| Question | IP54 | IP65 |
|---|---|---|
| Dust protection | Limited ingress permitted without harmful deposits | Dust-tight |
| Water protection | Splashing-water protection | Water-jet protection under test conditions |
| Outdoor sun/heat | Not solved by IP rating | Not solved by IP rating |
| Condensation | Requires installation controls | Still requires installation controls |
| AUSENIST selection | Documented IP54 configurations | Confirm separately before quotation |
What Must Be Confirmed?
- Rain direction, washdown, dust, salt and chemical exposure.
- Direct sunlight and maximum enclosure temperature.
- Possibility of flooding or standing water.
- Cable glands, vents, drains and mounting orientation.
- Required certification and test documentation.
Selection Logic
Use IP54 where the drive is protected from direct severe exposure and the full installation maintains its rating. Specify IP65 when the risk assessment requires dust-tight and water-jet resistance, but verify the exact product. A ventilated sunshade or secondary enclosure may be necessary, provided it does not trap heat.
Common Mistakes
- Describing IP54 as waterproof.
- Assuming IP65 protects against submersion.
- Using unsealed glands that reduce the complete installation rating.
- Placing any enclosure in direct sun without a temperature calculation.
AUSENIST Solution
AUSENIST can supply documented IP54 pump-drive configurations and review higher-protection project requirements. If IP65 is mandatory, it must appear in the approved model specification rather than only in marketing text.
FAQ
Is IP65 always better?
It gives stronger ingress protection but may cost more and still requires thermal design.
Can IP54 be used under a rain canopy?
Potentially, if splash, condensation, temperature and cable entries are adequately controlled.
Does an IP rating include corrosion resistance?
No. Materials and environmental corrosion requirements need separate review.
