Quanzhou Ausenist Technology Co., Ltd Modbus RTU Remote Monitoring for a Three-Pump VFD System

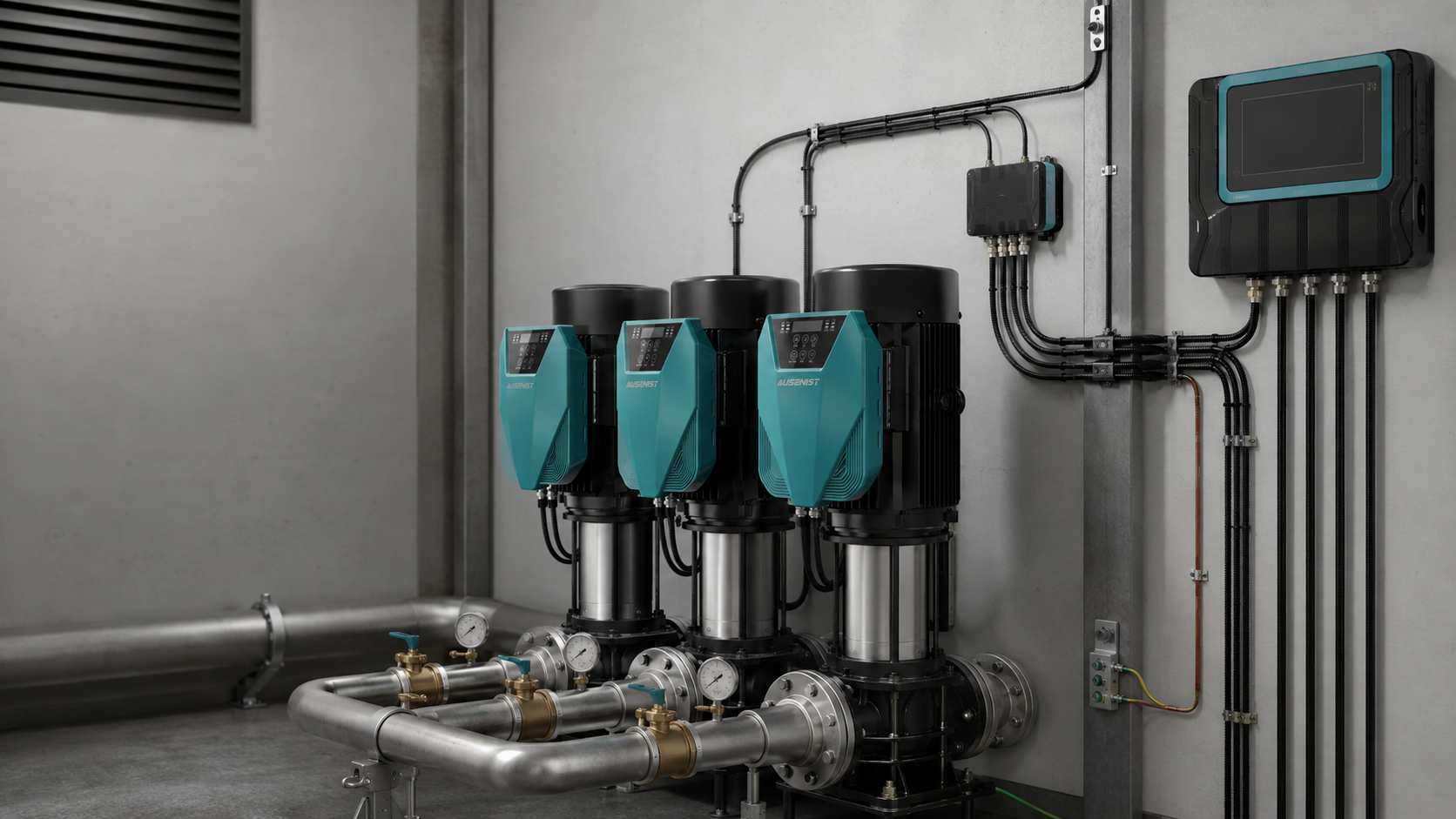

Engineering reference image; the exact register map depends on the approved drive version.
Three pump VFDs can be monitored over RS485 Modbus RTU when addresses, baud rate, parity, register mapping and timeout behavior are documented. Remote monitoring should not disable local pressure control if the supervisory connection fails.
Recommended Data Points
| Type | Typical Requirement |
|---|---|
| Status | Ready, running, stopped and faulted |
| Measurements | Frequency, current, pressure feedback and runtime |
| Alarms | Fault code, sensor failure and communication loss |
| Commands | Start/stop, reset and setpoint only when authorized |
| Identity | Drive address, model and parameter version |
What Must Be Confirmed?
- Exact YS620/YS820 version and approved register map.
- Which device is the Modbus master.
- Pump-network communication versus external SCADA connection.
- Bus cable, termination, shielding and maximum route.
- Polling interval, timeout and fallback behavior.
Selection Logic
Build RS485 as a daisy-chain bus rather than an uncontrolled star. Assign unique addresses and document scaling and data type for every point. Start with read-only monitoring, then enable remote commands only after access and safety rules are approved.
Common Mistakes
- Assuming all models use the same register addresses.
- Giving two devices the same node address.
- Polling too fast and overloading the network.
- Allowing a SCADA outage to stop local water supply unintentionally.
AUSENIST Solution
AUSENIST can confirm the interface, provide a register list for the approved version, preset addresses and support an integration test. External gateways, cloud software and cybersecurity remain separate project components.
FAQ
Is RS485 the same as Modbus RTU?
RS485 is the physical interface; Modbus RTU is a communication protocol used over it.
Can one port handle multi-pump control and SCADA?
That depends on the exact hardware and topology. Confirm the selected version before design freeze.
What happens if Modbus fails?
Local operation should follow the agreed fallback while an alarm reports the link failure.
