Quanzhou Ausenist Technology Co., Ltd One VFD per Pump or Cascade Contactor Control for Three Pumps?

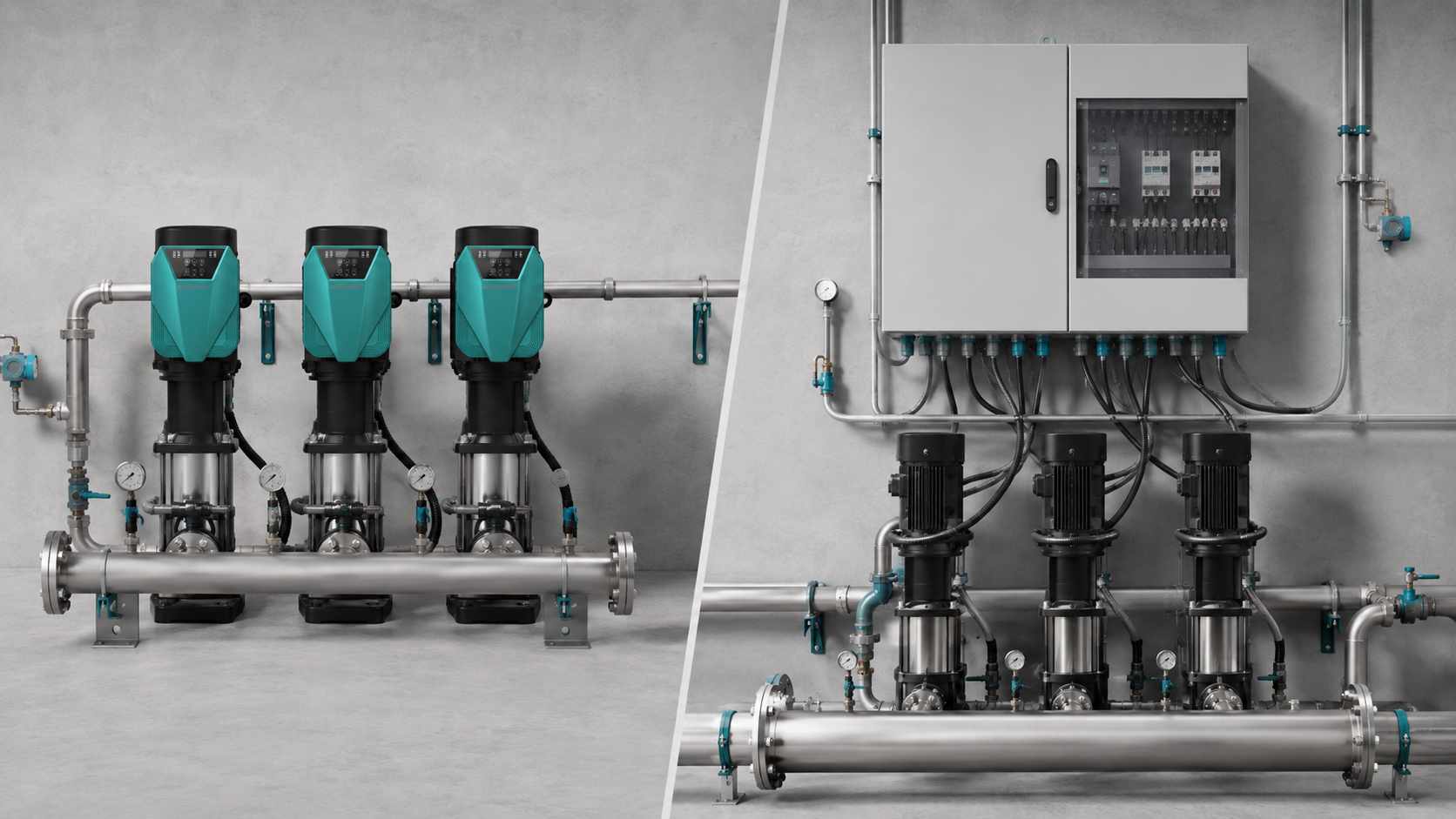

Engineering reference image; the correct architecture depends on duty and project requirements.
One VFD per pump gives independent soft starting, motor protection, rotation and variable-speed operation. A shared VFD with cascade contactors may reduce drive hardware, but it requires more switching logic and careful motor protection. The shared output must never be switched casually while energized.
Architecture Comparison
| Question | One VFD per Pump | Shared VFD Cascade |
|---|---|---|
| Independent speed control | Yes | Usually only one pump at a time |
| Motor protection | Individual drive protection | Separate protection required for fixed-speed motors |
| Redundancy | Better if one drive fails | Shared drive can be a single point of failure |
| Wiring | More drives, simpler motor ownership | More contactor and transfer interlocking |
| Expansion | Usually easier | Depends on panel design |
What Must Be Confirmed?
- Whether several pumps must vary speed simultaneously.
- Required redundancy and acceptable single points of failure.
- Motor sizes, pump curves and rotation requirements.
- Panel space, service capability and lifecycle cost.
- Safe switching sequence and local electrical rules.
Selection Logic
Use one VFD per pump when pressure quality, smooth staging, independent protection and availability matter most. Consider a cascade panel only when its lower drive count justifies the added switching and protection complexity. Never connect multiple running motors directly to one VFD output unless the complete design explicitly permits it.
Common Mistakes
- Comparing only purchase price.
- Omitting overload protection for bypassed or fixed-speed motors.
- Switching the VFD output without proper interlocks.
- Ignoring the operational impact of one shared-drive failure.
AUSENIST Solution
AUSENIST can supply one-drive-per-pump YS620/YS820 solutions and review a customer’s cascade concept. The safest architecture is selected from hydraulic duty, redundancy, maintenance and compliance requirements—not from component count alone.
FAQ
Is one VFD per pump always required?
No, but it is often the clearer solution for independent control and protection.
Is a cascade system always cheaper?
Not after contactors, protection, panel labor, commissioning and downtime risk are included.
Can different-size pumps share one VFD?
That requires a detailed transfer and parameter strategy and is not a default recommendation.
