7.5kW 380V VFD for a Deep Well Pump with Long Cable in the Philippines

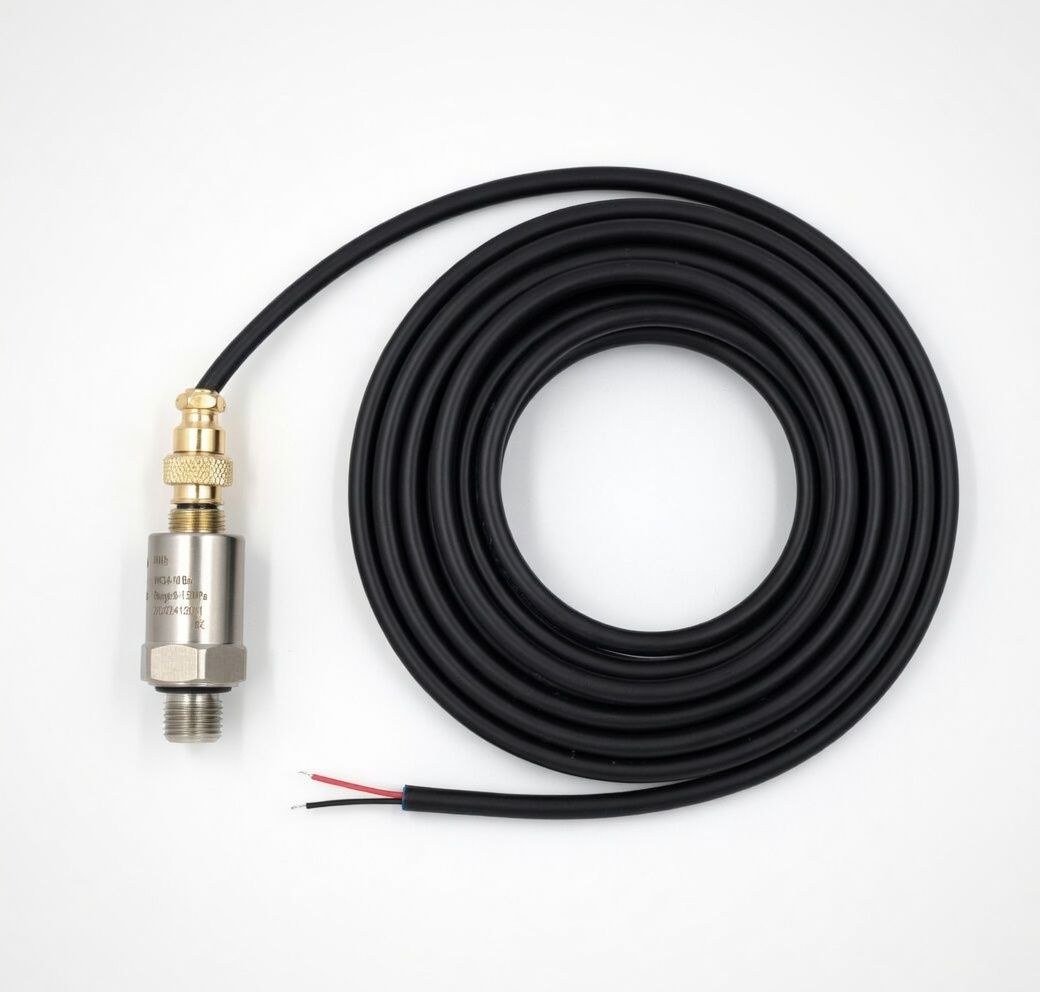

Real pressure transmitter and cable photo used for technical reference; it is not presented as the customer site photo.

Introduction

A water contractor in the Philippines needed a 380V VFD for a 7.5kW deep well pump. The application required variable-speed pump control, but the installation also included a motor cable running from the surface control panel to the submersible motor.

For this type of project, AUSENIST recommended that the VFD selection be reviewed together with motor current, cable length, grounding and protection accessories. The available information did not include verified running data, so the article explains the expected operating behavior and engineering checks.

Project Overview

Item	Project Requirement
Country	Philippines
Customer Type	Water contractor
Application	Deep well water supply
Pump Type	Submersible deep well pump
Motor Power	7.5kW
Motor Voltage	380V three-phase
Power Supply	380V three-phase
Control Requirement	Variable-speed pump operation
Site Conditions	Long cable between VFD and submersible motor
VFD Model	AUSENIST 380V pump VFD, 7.5kW class
Accessories	Output reactor to be reviewed according to actual cable length

Customer Requirement

The contractor wanted to use a VFD to control a deep well pump instead of running the motor only at full speed. The system needed controlled starting, adjustable pump speed and protection settings suitable for a submerged motor.

The main purchasing issue was not only the VFD power rating. The customer also needed to know whether the long motor cable would affect the drive selection and whether an output reactor or other protection should be included.

Technical Challenge

Deep well pumps often have the VFD installed far from the motor. A long output cable can increase electrical stress at the motor terminals and may create leakage current, interference or insulation stress depending on cable type, length and switching conditions.

The installer must also consider grounding and motor protection. A submersible pump is harder to inspect after installation, so wrong motor data, poor cable termination or inadequate protection can lead to costly service work.

VFD Selection

Based on the information provided by the customer, the recommended direction is a 7.5kW 380V pump VFD matched to the actual submersible motor current. Because the motor is installed in a well, the selection should not be finalized from kW alone.

AUSENIST should review:

• Motor rated current, voltage and frequency.
• Cable length from VFD output to motor terminals.
• Cable size, insulation condition and grounding.
• Pump curve and required operating frequency range.
• Water level protection method if dry-run risk exists.

If the cable length is high or the motor insulation risk is unclear, an output reactor should be considered. The final decision must follow the selected VFD documentation and site electrical conditions.

Recommended Solution

Item	Recommended Configuration
VFD Model	AUSENIST 380V pump VFD, 7.5kW class
Rated Power	7.5kW, subject to motor current confirmation
Input	380V three-phase
Output	380V three-phase
Control Mode	Pump speed control
Protection Focus	Motor current, dry-run risk and cable-related stress
Optional Accessories	Output reactor, pressure or level feedback device if required

The VFD should start the deep well pump gradually and allow the installer to adjust output frequency according to the water supply requirement. If the system uses a tank, pressure control or level control, the feedback device must be selected and wired according to the chosen control method.

System Operating Logic

Start command or feedback demand
↓
VFD accelerates pump motor
↓
Output frequency follows required flow or pressure
↓
Motor current and protection status are monitored
↓
Pump operates within confirmed hydraulic range

Recommended Initial Parameters

Parameter	Recommended Setting
Motor Rated Power	Set according to 7.5kW motor nameplate
Motor Rated Voltage	380V
Motor Rated Current	Set according to actual submersible motor nameplate
Maximum Frequency	According to motor and pump rating
Minimum Frequency	Confirm according to pump cooling and hydraulic requirement
Acceleration Time	Long enough to reduce hydraulic and electrical shock
Deceleration Time	Adjust to avoid pressure surge and overvoltage trips
Protection Settings	Configure according to motor, cable and dry-run protection plan

Final settings should be adjusted according to the actual motor nameplate, pump curve and site conditions.

Expected Operating Behavior

The VFD is expected to reduce starting shock and allow the deep well pump to operate at a controlled speed range. If feedback control is added, the drive can respond to pressure or level demand instead of forcing continuous full-speed operation.

No actual running data or customer feedback was provided, so no measured performance result is claimed.

Engineering Notes

• Confirm cable length before deciding whether an output reactor is needed.
• Use the motor rated current from the submersible pump nameplate.
• Review grounding and shielding to reduce interference and leakage problems.
• Do not operate the pump below a frequency that may affect cooling or hydraulic performance.
• Dry-run or low-water protection should be considered for deep well applications.

FAQ

Can a VFD be used for a deep well pump?

Yes, if the VFD is correctly matched to the motor voltage, current and pump duty. Cable length and protection settings are especially important.

Why does cable length matter for a submersible pump VFD?

Long VFD output cables can increase electrical stress and interference risk. An output reactor may be required depending on the actual installation.

Should the VFD be sized by kW or current?

Both should be checked, but rated current is essential. The selected VFD must support the actual motor current under the required duty.

Can the VFD protect against dry running?

Protection depends on the selected control method and available feedback. Current-based or external level protection may be considered, but it must be tested on site.

Have a Similar Pump Application?

If you are selecting a VFD for a centrifugal pump, booster pump, irrigation pump or constant-pressure water system, send us:

• Motor nameplate
• Pump type
• Motor power
• Rated voltage and current
• Power supply
• Cable length
• Application conditions

AUSENIST can recommend the appropriate VFD model and control configuration.
