Quanzhou Ausenist Technology Co., Ltd Remote Water Pump VFD Monitoring Through an External 4G Gateway

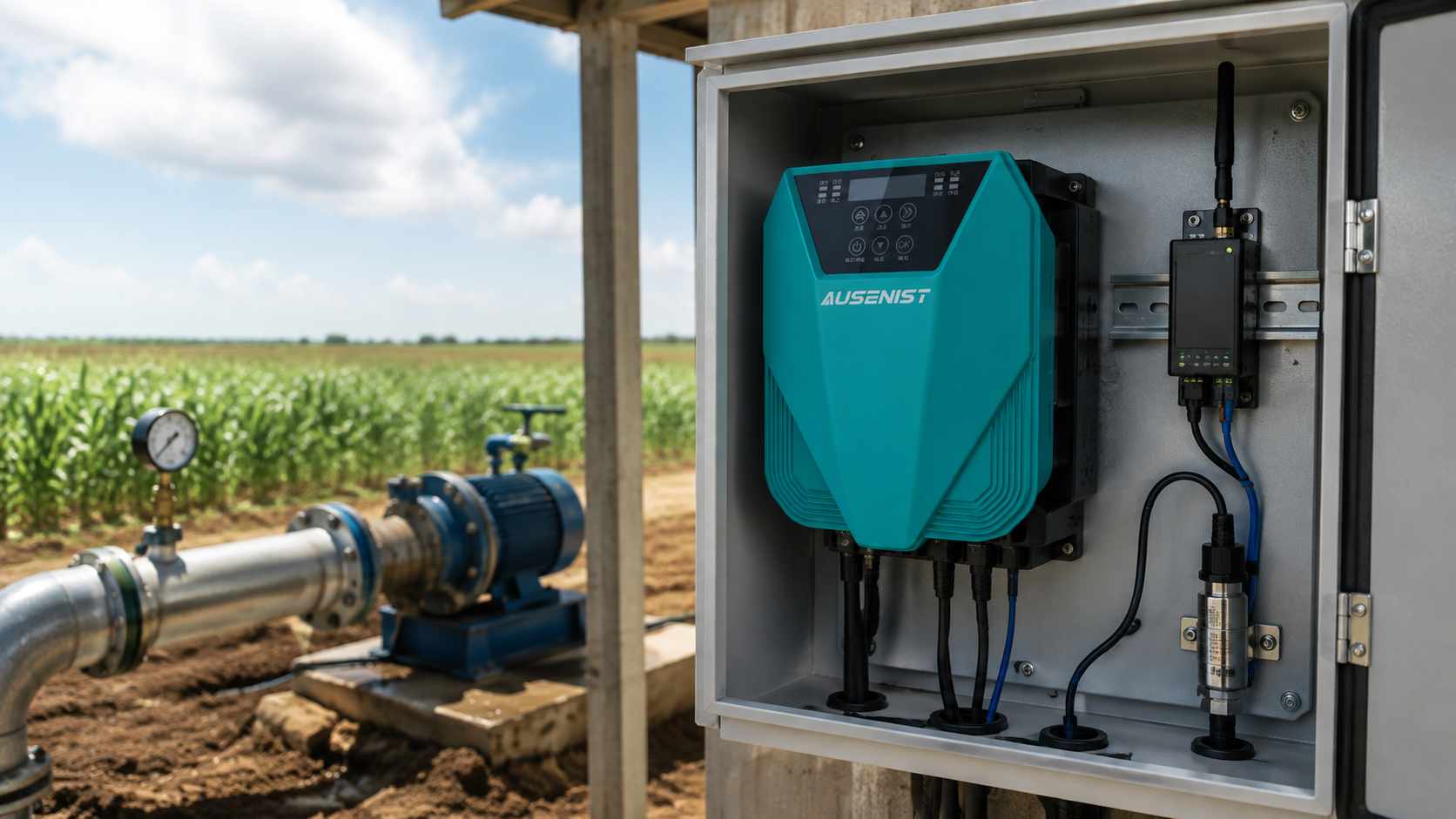

Engineering reference image; the cellular gateway and cloud service are separate system components.
An AUSENIST pump VFD can be connected to remote monitoring through a compatible external 4G gateway that reads confirmed Modbus RTU data over RS485. The VFD itself should not be described as a complete IoT platform unless the gateway, cloud service and cybersecurity scope are included.
Reference Architecture
Pump and sensor → AUSENIST VFD → RS485 Modbus RTU → external 4G gateway → approved server or dashboard.
| Data | Typical Remote Use |
|---|---|
| Run/stop status | Confirm station availability |
| Frequency/current | Check operating condition |
| Pressure/level | Follow the water process |
| Fault code | Create actionable alarm messages |
| Runtime | Plan maintenance |
What Must Be Confirmed?
- VFD model, firmware and register map.
- Gateway RS485 compatibility and cellular bands.
- SIM, data plan and local signal strength.
- Server ownership, retention and user access.
- Remote command permissions and audit log.
- Local operation when the cellular link fails.
Selection Logic
Keep pressure control local so a lost mobile connection does not stop the pump unnecessarily. Begin with remote monitoring only. If remote start, stop, reset or setpoint control is required, apply authentication, command limits, user roles and a documented fallback.
Common Mistakes
- Calling an RS485 port “built-in IoT.”
- Buying a gateway before confirming the register map.
- Depending on cloud communication for basic pressure control.
- Exposing remote reset or start without access control.
AUSENIST Solution
AUSENIST can confirm the drive interface, required registers, addresses and local fallback parameters. The customer or integrator selects and secures the 4G gateway and cloud platform unless a complete customized scope is agreed.
FAQ
Does the VFD need a SIM card?
Not in this architecture. The external gateway contains the cellular connection.
Can the pump keep running without 4G?
Yes when local control and fallback are designed correctly.
Can several VFDs share one gateway?
Often yes, subject to RS485 node count, polling and gateway capability.
