YS720 TOUCH SCREEN PUMP INVERTER 4-11KW

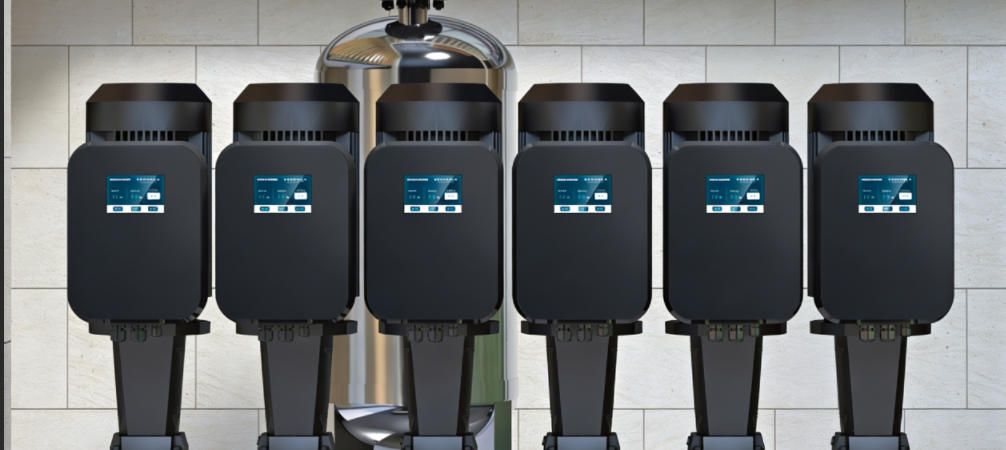

YS720 series intelligent pump drives: IP65,dust-proof,water-proof and can be mounted directly on the wiring box of motors,compatible with types of transducers.The operation system is easy and simple,reliable and good performace with low noise ,can realize pumps to combine work.
Selection table
| (KW) | (V) | (A) | (KW) | H | W | D | (mm) | |
| YS720-2SR75A0 | 0.75 | Single phase in 220VAC, Three phase out 220VAC | 4 | 0.75 | 198 | 205 | 108 | φ 4 |
| YS720-2S1R5A0 | 1.5 | Single phase in 220VAC, Three phase out 220VAC | 7 | 1.5 | 198 | 205 | 108 | φ 4 |
| YS720-2S2R2A0 | 2.2 | Single phase in 220VAC, Three phase out 220VAC | 10 | 2.2 | 198 | 205 | 108 | φ 4 |
| YS720-4TR75A0 | 0.75 | Three phase in and out 380VAC | 2.1 | 0.75 | 198 | 205 | 108 | φ 4 |
| YS720-4T1R5A0 | 1.5 | Three phase in and out 380VAC | 3.8 | 1.5 | 198 | 205 | 108 | φ 4 |
| YS720-4T2R2A0 | 2.2 | Three phase in and out 380VAC | 5.1 | 2.2 | 198 | 205 | 108 | φ 4 |
| YS720-4T003A0 | 3.0 | Three phase in and out 380VAC | 7 | 3.0 | 198 | 205 | 108 | φ 4 |
| YS720-4T004A0 | 4.0 | Three phase in and out 380VAC | 9 | 4.0 | 290 | 209 | 185 | φ 5 |
| YS720-4T5R5A0 | 5.5 | Three phase in and out 380VAC | 13 | 5.5 | 290 | 209 | 185 | φ 5 |
| YS720-4T7R5A0 | 7.5 | Three phase in and out 380VAC | 17 | 7.5 | 290 | 209 | 185 | φ 5 |
| YS720-4T011A0 | 11 | Three phase in and out 380VAC | 25 | 11 | 290 | 209 | 185 | φ 5 |
| YS720-4T015A0 | 15 | Three phase in and out 380VAC | 32 | 15 | 368 | 319 | 165 | φ 5 |
| YS720-4T018R5A0 | 18.5 | Three phase in and out 380VAC | 38 | 18.5 | 368 | 319 | 165 | φ 5 |
| YS720-4T022A0 | 22 | Three phase in and out 380VAC | 45 | 22 | 368 | 319 | 165 | φ 5 |
TECHNICAL PARAMETERS
| Starting Torque | 0.5Hz100% |
| Speed Adjustable Range | 1:100 |
| Speod-holding precision | ±1.0% |
| Overload Capability | 150% rated current for 60s 180% rated current for 1s |
| Acceleration/deceleration Time | 0.1-3600s |
| Starting Frequency | 0.01~10.00Hz |
| Input Voltage | 220V/380±15% |
| Input Frequency Range | 50/60Hz,fluctuation±5% |
| Output Voltage | 0-rated input voltage |
| Output Frequency | 0-200Hz |
| Programmable Digital Input | 2 way of digital terminal input |
| Programmable Analog Input | V:0-5V V(remote pressure gauge):0-10V C (pressure transducer ):4-20mA |
| Replay Output | 1 way output,pragrammable |
| Open Collection Output | 1 way output,pragrammable |
| Installation | Installation should be executed under the conditions of no direct sunlight,dust,corrosive gas,inflammable gas,oil mist,steam and water drop |
| Altitude | Lower than 1000m, service in derated capacity above 1000m.Derate 1% capacity every 100m increase in temperature |
| Environment Temperature | -10℃-+40℃,service in derated capacity for 40℃-50℃.Derate 4% capacity every 1℃ increase in height |
| Humidity | ≤95%RH,no water condensation. |
| Vibration | <5.9m/52(0.6G) |
| Command Running Channel | Three kinds of channels:1.Operational panel 2.Control terminal,3.Serial communication port,choose 1 and 2 for master drive and 3 for auxiliaries |
| Built-in PID | Advanced PID arithmetic to realize closed loop control system |
| Stall Speed Control | Automatically limit current and voltage at running period to prevent tripping due to frequent overcurrent or overvoltage |
| Master and Auxiliaries connection | Extensible RS485 design,one drive in the system can be master and controls the other auxiliary drives (4 at most) to work by communication mode,Master drive sends PID feedback information to the auxiliary drives and monitors status of auxiliaries in real time.Any failure of the auxiliary drives does not affect the others |
| Water Shortage Protection | If the drive detects the pipe pressure is lower than the water shortage pressure set value, the system stops working automatically.After set period time, it restarts automatically for specified times.If pressure restores to normal,system works normally,otherwise,system stops automatically in case of idle running of pump and prolongs pump lifetime to the maximum extent |
| High Pressure Alarm | When pressure exceeds set pressure,it stops running automatically to avoid damage on pipe network due to high pressure |
| Automatic Energy-saving Running | Automatically lower output voltage under light loading to save energy |
| Password Setting | 4-bit password can be set with non-zero numbers,Exit password setting interface and the password will be valide in 1 minute |
| Parameters Locking | Define whether the parameter is locked in running or stopped status in case of misoperation |

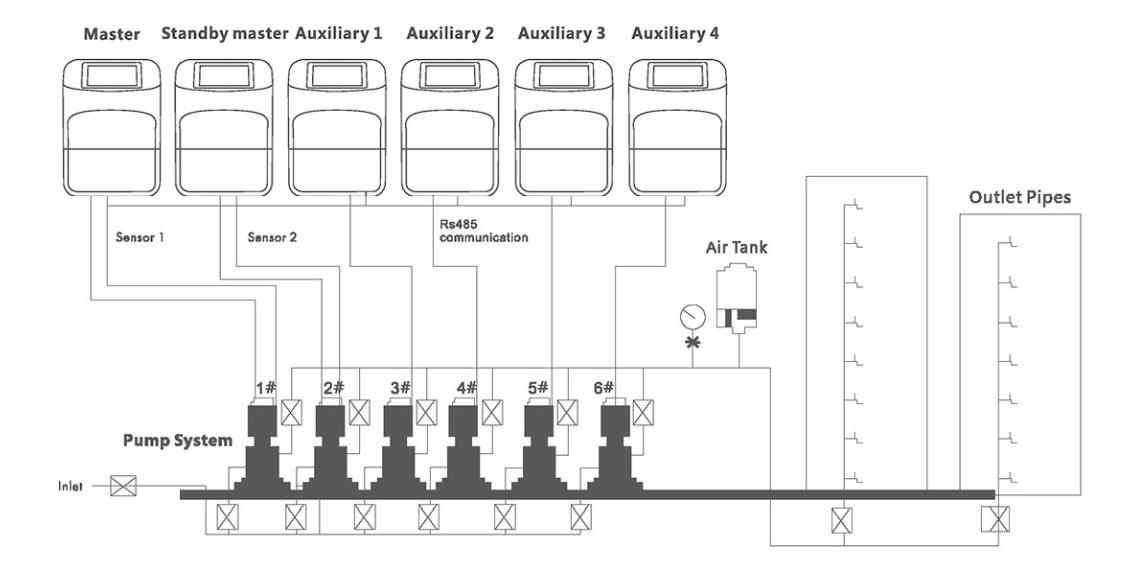

MUTI-PUMPS WORKING SYSTEM
Interoperation between master and auxiliaries by RS485 communication,5 auxiliaries at most.
Main master drive detects pipe pressure and sends the signal to the auxiliary and automatically commands the auxiliary to start or slop according to the pipe pressure and PID status.
Main master monilors the running status of auxiliaries,when the main master failed,the stand by master will aulomatically be switched into main master.When one auxiliary failed,the controlling signal will skip to slartl the next auxiliary,
so the muti-pumps can work alternatively.
Master and auxiliaries can work sequentially to balance the working time of each pump thus exiending lifetime of pumps.
